90 cm Icon built-in and flush hob
BARAZZA

90 cm Icon built-in and flush hob

ICON Hobs Black Glass Ceramic barazza

Product info

Code 1PIDI9
Collection ICON
Designer BARAZZA

Specifications

Type 5 induction zones
Finish Black Glass Ceramic
Installation Flush-top / Flat glass edge built-in
Collection Icon
Features Module width 90, Induction, Power limiter, Automatic cooking programs, Bridge function, Automatic pan detection, Booster function, Selective pan detection, Pause/Recall function, End of cooking timer, Child safety lock, Residual heat indicator
Documents https://barazzasrl.it/prodotti/doc/libretti/PIDIC_00_0.pdf , https://barazzasrl.it/prodotti/doc/pdf/doc-1PIDI9-en.pdf , https://barazzasrl.it/prodotti/doc/schede-tecniche/1PIDI9.pdf

Downloads

Description

  • Touch screen controls
  • functions: power management, automatic functions (Melt, Warm), Bridge for LH zones, automatic pan recognition, Booster, automatic preheating, selective pan detection, pause/reminder function, independent cooking end timers, keep warm
  • safety devices: electronic child-safety lock, residual heat indicator, overflow alarm, safety switch-off
  • minimum pan diameter: ø 90 mm - ø 110 mm
  • adjustable power levels: 2.2-2.3-2.4…7.0-7.1-7.2 kW
  • maximum absorbed power: 7.2 kW

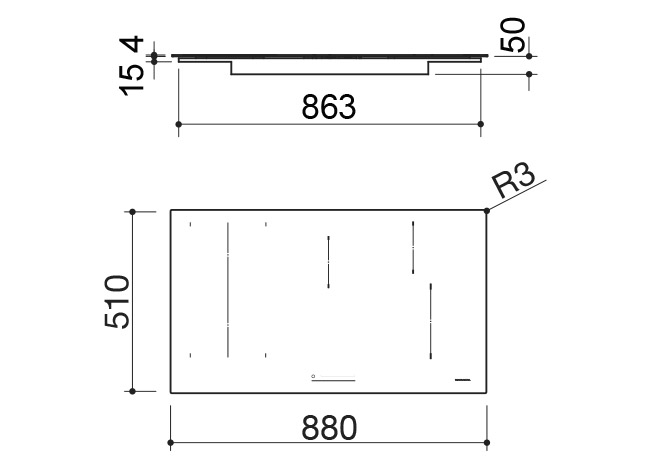

  • 87x49 cm cut out
  • flush-top: check technical sheet
  • Induction zone power:
  • 2 zones ø 145mm 1.2-1.8 kW (*)
  • 1 zone ø 210 mm: 2.2-3.6 kW (*)
  • 2 oval zones 2.2-3.6 kW (*)
  • (*) with Booster function
